SMD components play a crucial role in the field of electronics. These small devices have opened up possibilities for smaller circuits, resulting in more streamlined designs and improved performance. Anyone involved in electronics must understand SMD components, as these components play a crucial role in the functioning of electronic circuits. For those interested in electronics, whether as a hobby or profession, this guide offers a thorough explanation of SMD components, shedding light on their intricate workings.
Basic Understanding of SMD Components
Surface-mount devices (SMDs) refer to electronic components that are directly mounted onto a printed circuit board (PCB). They have become the preferred choice over through-hole technology (THT) components, as they eliminate the need for drilling holes in the PCB for installation. Their compact size and ability to accommodate a higher number of components make SMD components highly sought after, resulting in more efficient circuit designs. SMD components are essential for the proper operation of electronic devices. They can be found in a wide range of modern electronic devices, such as computers, mobile phones, and home appliances. Their main purpose is to regulate the movement of electricity within a circuit, but they are also capable of carrying out different functions based on the type of component.
SMD components have numerous advantages compared to traditional through-hole components. Firstly, they are smaller and lighter, enabling the development of more compact and easily transportable electronic devices. Furthermore, positioning them on either side of a PCB enhances circuit density and enables the creation of intricate circuit designs. In addition to offering cost-saving benefits, SMD components facilitate easy installation through automated equipment, leading to faster production.
Identifying SMD Components
Identifying SMD components demands careful observation of tiny particulars. It is necessary to use a magnifying glass or microscope when examining these miniaturized devices, as they do not have any traditional markings. Utilize reference charts, datasheets, and online resources to help identify distinctive codes, dimensions, and polarity markings. A keen eye and familiarity with component characteristics ensure accurate identification in electronic circuits.

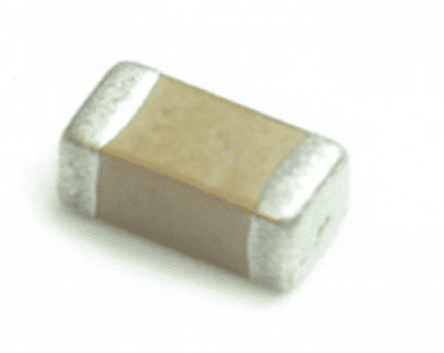

SMD Capacitors In SMD Components
PCB components, primarily used for energy storage, are SMD capacitors consisting of two metal pieces separated by an insulator. The symbol for capacitance is “C,” and it is measured in Farads (F).
We typically utilize the smaller units μF, nF, and pF since the unit F is too large for the capacitance of SMDs. A 1μF is equivalent to 1000nF, and a 1nF to 1000pF.
There are two ways to read the capacitance value on the surface of SMD capacitors.
- Indicate the working voltage and capacitance of the capacitors directly, such as 10μF/16V.
- When working voltage and Arabic numerals are combined, the final number represents the power of ten, while the first two represent the capacitance value in absolute terms.
For instance, 107 denotes 10 × 10^7pF, or 100μF, and 225, meaning 22 × 10^5pF, or 2.2μF.
In addition, the capacitance of SMD capacitors is indicated by a letter and a set of integers.
The initials stand for tolerance to capacitance. This chart is provided below:
Letter | F | G | J | K | L | M |
Tolerance | ±1% | ±2% | ±5% | ±10% | ±15% | ±20% |
For instance, 10 × 104pF (= 0.1μF) is represented by the symbol 104J, and the capacitance tolerance is ±5%.
Categorizing of SMD Capacitors
Ceramic capacitors
Ceramic capacitors are composed of two terminals on a ceramic insulator that has been fused and coated with silver. C.CAP stands for ceramic capacitors on the surface of SMD capacitors.
Aluminum electrolytic capacitors
Aluminum electrolytic capacitors consist of an aluminum cylinder containing liquid electrolyte, serving as the negative electrode, and a coiled aluminum strip covered with an oxide film, acting as the positive electrode and insulator.
Tantalum electrolytic capacitors
Tantalum electrolytic capacitors consist of a diluted sulfuric acid as the negative electrode and tantalum or niobium as the positive electrode, with an oxide coating covering the tantalum or niobium serving as the insulator. TAN.CAP or TC denotes these capacitors.
SMD Resistors In SMD Components
Simple surface mount components called SMD resistors have a current limit on them. Resistance has the letter “R” associated with it, and its unit is the Ohm (Ω). A 1KΩ is equivalent to 1000Ω, and a 1MΩ to 1000000Ω.
SMD resistors can display their resistance value in two different ways.
1: Arabic numerals: the resistance value’s absolute values are indicated by the first two digits, and the power of ten is indicated by the last digit.
In this case, 103 denotes 10,000Ω, 391 390Ω, and 473 47,000Ω.
2: Arabic numbers and R are used to represent different parts of the resistance value: Arabic numbers before R represent the complete resistance value, and Arabic numbers after R represent the fractional resistance value.
As an illustration, R100 denotes 0.100Ω, 5R60 5.60Ω, and 30R9 30.9Ω.
SMD resistor classification: regular, precision, power, high voltage, high resistance, high frequency, and high voltage are the different types of resistors based on their intended uses.
Identifying SMD Inductors
Basic electronic components known as SMD inductors store and transform electrical energy into magnetic energy. An enameled wire wound around an insulator is the basic component of an inductor. The unit of inductance is Henry (H), and the letter “L” stands for inductance. 1000mH is equivalent to 1H, and 1000μH is equal to 1mH.
The following describes how to display the inductance value on the SMD inductors’ look.
The absolute values of the inductance value are shown by the first two Arabic numerals, and the power of 10 is represented by the final number.
470, for instance, denotes 47H, 101, 100H, and 100, 10H.
Identifying SMD Triodes And SMD Diodes
SMD diodes are electrical components with unidirectional conductivity. Diodes are also polar parts; that is, it is impossible to flip the positive and negative electrodes. The resistance of the diode is incredibly low when currents are flowing from the positive electrode. Conversely, there is a great deal of opposition. For diodes, use CR or D. The terminal on SMD diodes that has lines printed on it is the negative electrode.
SMD triodes are current-amplifying control components. The letter Q represents triodes.
Identifying SMD ICs
Semiconductors, known as Surface-Mounted Integrated Circuits or SMD ICs, undergo packaging after integrating components like diodes, resistors, capacitors, and inductors onto a minuscule semiconductor. The integrated circuits comprise PLCC, PPGA, PQFP, QFP, BGA, CSP, SSOP, etc. based on the packaging variations.
Identifying SMD Crystal Oscillators
An SMD crystal is a quartz piece with two polished terminals coated in silver spray, serving as an SMD oscillator where the quartz component and IC are packaged together to create the oscillation circuit. Y stands for crystal oscillators.
SMD crystal oscillators give the system’s fundamental clock signals.
A crystal oscillator is a component that displays a sequence of numbers together with HZ or Z.
In the picture below, crystal oscillators are visible. Other than DIP crystal oscillators, which contain two long pins, SMD crystal oscillators are used instead. Two or four pins are present in SMD crystal oscillators.
Identifying SMD Connectors
SMD connectors are typically used in pairs and offer circuits either temporary or permanent electrical connections.

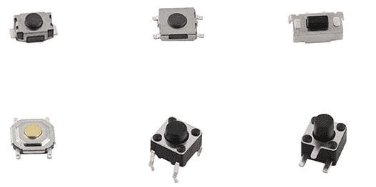

Identifying SMD Buttons
Surface mount switches, or SMD switches, employ a button to join or divide the two contacts in order to create a circuit switch.
Importance of Proper Storage
SMD components are susceptible to damage from moisture, static electricity, and mishandling. Proper storage is imperative to maintain the integrity of these components and ensure their reliability when integrated into electronic circuits. Investing in appropriate storage solutions safeguards the value of SMD components over time.
The Organized Approach: SMD Components Storage Box
An SMD components storage box provides an organized solution for storing and categorizing various components. Equipped with multiple compartments and transparent lids, these boxes enable easy identification and access to required components. Constructed with anti-static materials, these storage boxes prevent damage from static electricity, preserving the quality of the components within.
Conclusion
This article provides a concise overview of frequently encountered surface mount device (SMD) components, showcases accompanying visual representations, and offers guidance on discerning components based on their visual characteristics. If you have any inquiries or requirements regarding SMD components or PCBs, please feel free to reach out to PCBONLINE via email or through the online chat window located on the right side of our website pages.
Frequently Asked Question (FAQs)
What are smd components?
Surface Mount Devices, commonly known as SMD components, affix to circuit boards using surface mount technology.
What are the classification of SMD components?
Based on various classification criteria, one can further categorize SMD into chip transistors and integrated circuits. Integrated circuits also encompass many packaging formats such as SOP, SOJ, PLCC, LCCC, QFP, BGA, CSP, FC, MCM, and others.
Why is SMD used?
Affordably priced and specifically engineered for efficient installation in large quantities using automated methods, SMDs stand out in the market. The aforementioned attributes render SMDs highly advantageous in the subsequent sectors: Various electronic devices, particularly those that demand exceptional performance and precision. Examples include the automobile, aviation, and medical industries.
